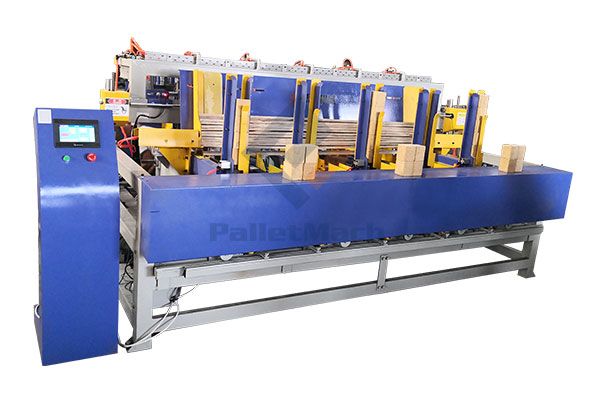

Automatic pallet legs nailing machine
2. MAX nail gun
3. one worker operation
4. adjustable size

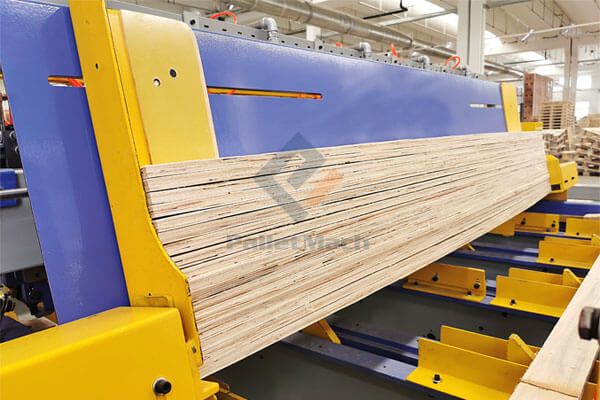

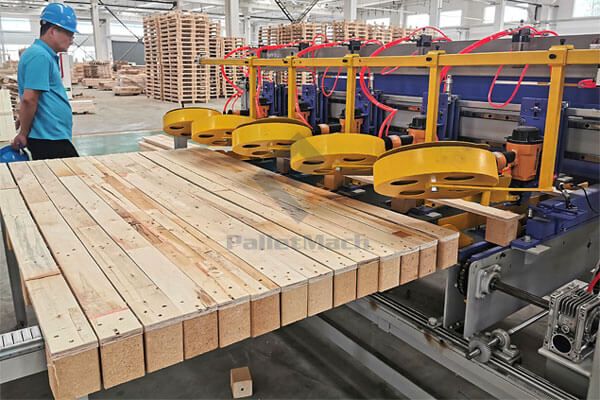

Automatic wood pallet legs nailing machine has two parts, one is feeding part, and another is nailing part. And it can nail wood pallet leg automatically, and can make 8~10 pcs/min, with high efficiency. Also save the labor cost, this machine just need one worker can operate, manual feeding the blacks, then machine working nailing pallet leg aromatically.

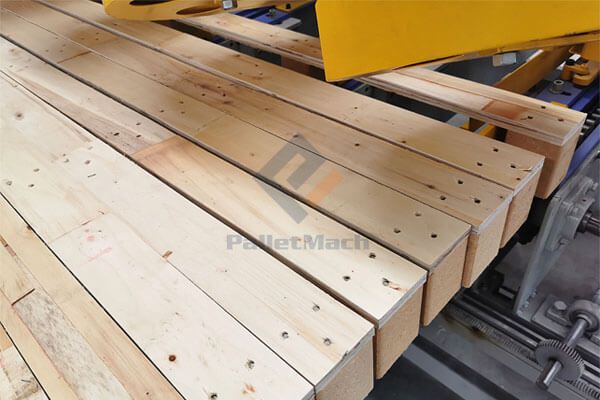

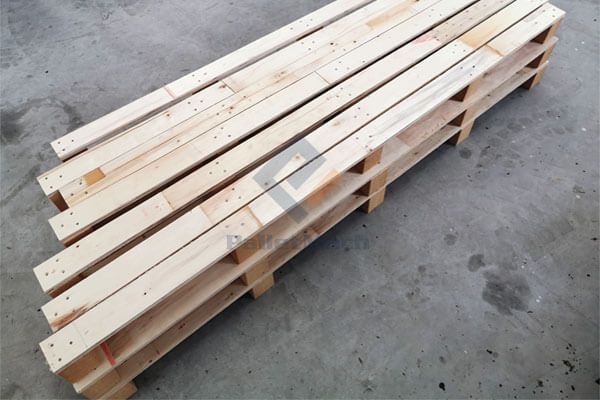

nailed pallet legs
Technical parameter
| Wood board length | 800-1350 mm |
| Wood board width | 80-150 mm |
| Wood board thickness | 12-20 mm |
| Wood block length | 80-150 mm |
| Wood block width | 80-150 mm |
| Wood block thickness | 80-100(110) mm |
| Wood board + wood block thickness | less than 130 mm |
| Capacity | 600-720 pieces/hour |
| Nailing gun | 3 pieces MAX CN70 |
| Coil nails | 3000 nails/coil, max. 57 mm length, |
| Nailing motor power | 2.25 kW |
| Feeding block motor power | 0.75 kW |
| Total power | 3 kW |
| Voltage | 380 V, 50 Hz, 3phase (Can customize) |
| Air pressure | 8 MPa |
| Electric components | Schneider brand |
| Pneumatic components | Airtac brand |
| PLC touch screen | Siemens |
| Machine dimension | 6 m*2.4 m*2.4 m (L*W*H) |
| Machine weight | 1100 kg |
