Vertical superfine wood powder machine is a powder making equipment used for special difficult crushing of light materials, fiber materials, brittle materials, tough materials, etc. Vertical superfine wood powder machine improves the fineness of wood powder to 10-320 meshes, solving the market in the vacancy of superfine powder, at the same time, during the milling process, two grade areas (i.e. general grade area and superfine grade area) can be divided. Vertical superfine wood powder machine has reasonable design, low loss, low noise, no pollution and easy operation.
Vertical superfine wood powder machine is beautiful in appearance, sturdy and durable, and has high output. Compared with the traditional wood powder machine, the efficiency is increased by more than 50%.
Application of Vertical Superfine Wood Powder Machine:
Vertical superfine wood powder machine is suitable for the crushing of the following materials: bamboo wood powder, nut shell, Chinese herbal medicine, bark, leaves, wheat bran, rice husk, corn cob, straw, charcoal, activated carbon, cellulose, potato residue, tea, hair, soybean meal is an ideal pulverizer in industries such as chemical industry, building materials, medicine, health care, breeding, food, and mosquito coils. (Note: vertical superfine wood powder machine is not suitable for crushing and processing of flammable and explosive materials.)
Structure and Crushing Principle of Vertical Superfine Wood Powder Machine:

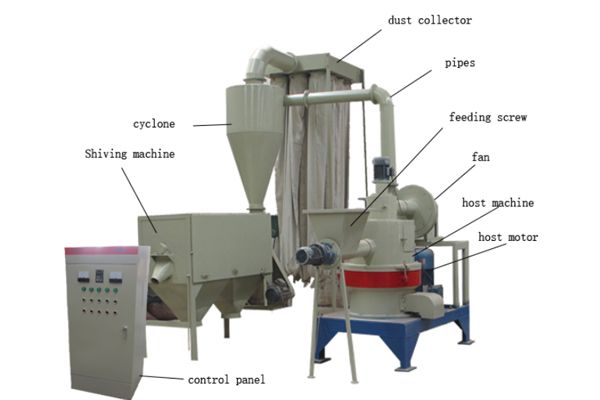

1. Vertical superfine wood powder machine is composed of three parts: a crushing chamber, a plug chamber and a wind chamber.
2. The crushing knife has alloy knives, which are all produced by professional manufacturers.
3. The attached machine is composed of a screening machine, a powder collector and a dust collector.
4. The main machine's crushing chamber adopts alloy knives, and the motor drives the rotor of the crusher to run at high speed, so that the machine generates high-speed airflow to produce high-strength impact, compression, cutting, and friction on the crushed materials to achieve a unique crushing function.
5. During the crushing process of the alloy knife, the rotor generates a high-speed airflow that rotates with the direction of the blade. The material is accelerated in the airflow and repeatedly impacts, cuts and friction, and is simultaneously subjected to three types of crushing effects. Since the centrifugal force of the analyzer rotor is also affected by the centripetal force of the airflow, when the centrifugal force is greater than the centripetal force, the fine particles enter the cyclone with the airflow, and the coarse particles enter the centrifugal rifle crushing chamber to continue pulverization until it reaches the required fineness.
Vertical superfine wood powder machine is also called "high-fineness wood powder machine" in the market. The high-fineness wood powder machine combines a variety of crushing principles and is a high-efficiency and energy-saving wood powder mill that integrates multiple crushing principles. In addition, vertical superfine wood powder machine is finely made and has a high processing technology. Vertical superfine wood powder machine adopts a double-layer body, tap water is injected into the body for water cooling. Vertical superfine wood powder machine is filled with a new type of material, which has the functions of sound insulation and heat dissipation. Therefore, Vertical superfine wood powder machine is used in production low noise and no vibration. High-fineness wood powder machine has beautiful appearance, sturdiness and durability, and high output. Compared with the traditional wood powder machine, the efficiency is increased by more than 50%.
Technical Parameters of Vertical Superfine Wood Powder Machine:
Vertical superfine wood powder machine is beautiful in appearance, sturdy and durable, and has high output. Compared with the traditional wood powder machine, the efficiency is increased by more than 50%.
Application of Vertical Superfine Wood Powder Machine:
Vertical superfine wood powder machine is suitable for the crushing of the following materials: bamboo wood powder, nut shell, Chinese herbal medicine, bark, leaves, wheat bran, rice husk, corn cob, straw, charcoal, activated carbon, cellulose, potato residue, tea, hair, soybean meal is an ideal pulverizer in industries such as chemical industry, building materials, medicine, health care, breeding, food, and mosquito coils. (Note: vertical superfine wood powder machine is not suitable for crushing and processing of flammable and explosive materials.)
Structure and Crushing Principle of Vertical Superfine Wood Powder Machine:
1. Vertical superfine wood powder machine is composed of three parts: a crushing chamber, a plug chamber and a wind chamber.
2. The crushing knife has alloy knives, which are all produced by professional manufacturers.
3. The attached machine is composed of a screening machine, a powder collector and a dust collector.
4. The main machine's crushing chamber adopts alloy knives, and the motor drives the rotor of the crusher to run at high speed, so that the machine generates high-speed airflow to produce high-strength impact, compression, cutting, and friction on the crushed materials to achieve a unique crushing function.
5. During the crushing process of the alloy knife, the rotor generates a high-speed airflow that rotates with the direction of the blade. The material is accelerated in the airflow and repeatedly impacts, cuts and friction, and is simultaneously subjected to three types of crushing effects. Since the centrifugal force of the analyzer rotor is also affected by the centripetal force of the airflow, when the centrifugal force is greater than the centripetal force, the fine particles enter the cyclone with the airflow, and the coarse particles enter the centrifugal rifle crushing chamber to continue pulverization until it reaches the required fineness.
Vertical superfine wood powder machine is also called "high-fineness wood powder machine" in the market. The high-fineness wood powder machine combines a variety of crushing principles and is a high-efficiency and energy-saving wood powder mill that integrates multiple crushing principles. In addition, vertical superfine wood powder machine is finely made and has a high processing technology. Vertical superfine wood powder machine adopts a double-layer body, tap water is injected into the body for water cooling. Vertical superfine wood powder machine is filled with a new type of material, which has the functions of sound insulation and heat dissipation. Therefore, Vertical superfine wood powder machine is used in production low noise and no vibration. High-fineness wood powder machine has beautiful appearance, sturdiness and durability, and high output. Compared with the traditional wood powder machine, the efficiency is increased by more than 50%.
Technical Parameters of Vertical Superfine Wood Powder Machine:
| Model | TYMF6R-600 |
| Number of blades (pieces) | 6 |
| Main engine power (kW) | 30 |
| Screener power (kW) | 3 |
| Maximum feeding diameter (mm) | 5 |
| Speed (r/min) | 380 |
| Finished product fineness (mesh) | 60-500 |
| Production efficiency (tons) | 0.05-0.4 |
| Equipment installation size (meter) | 5*2.5*4 |
