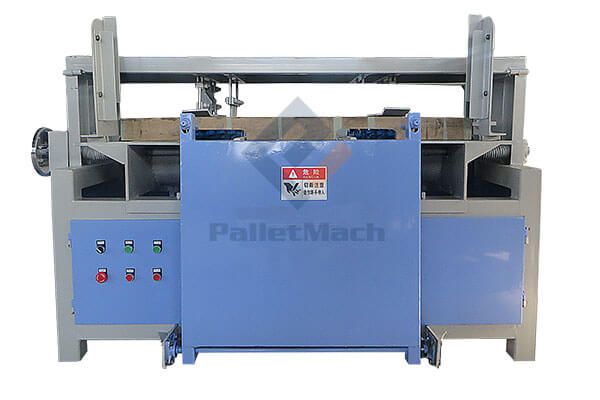

Wood Pallet Stringer Notching Machine

Wood Pallet Stringer Notching Machine

1. Slot making is easier with new machine
2. Only one worker easy operation
3. Wood shaving collector
4. Siemens motor
  • wood pallet stringer notching machine

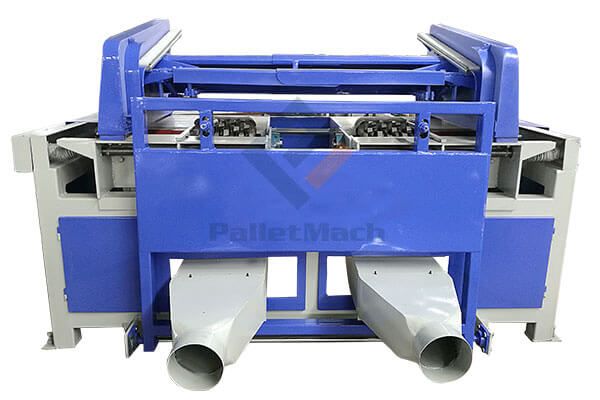

  • wood pallet grooving machine

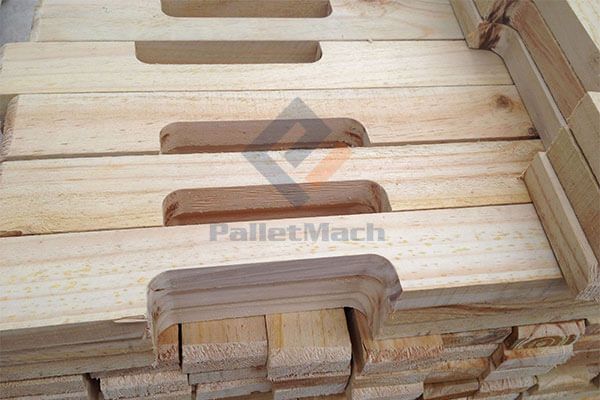

  • notched wood pallets

Wood pallet stringer notching machine is mainly used for wooden pallets and it has a great quality and high efficiency. wood pallet grooving machine is a kind of special requirements in the production of wooden pallets. Also known as the "American wood pallets", this wood pallet grooving machine is for wood pallets longitudinal automatic dredging, milling slot, dual slot open at the same time, and smooth slot with the same size.

Wood pallet stringer notching machine is special process for wood pallet processing, which it can be fork from four directions by forklift. It becomes popular pallet type in the world. It is suitable for different notching size, and it also can be customized according to customer demands.

  • 1) The machine heads with alloy material, with high hardness, wear resistance, strength and toughness, heat resistance, corrosion resistance and a series of excellent performance, thus ensuring the long-term performance.

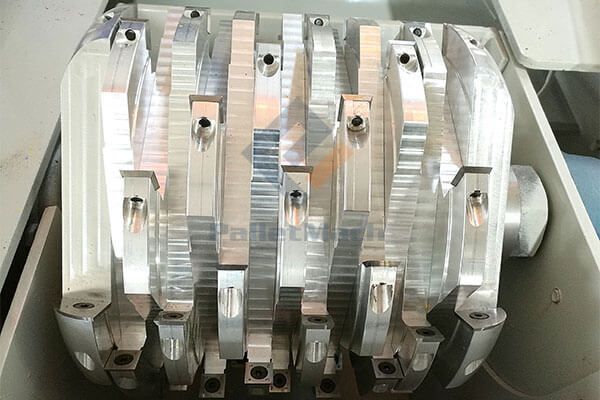

    knife
  • 2) Continuous feed, work platform automatic discharge mode, you can also open a dual-slot, Trench smooth without rough parts, standard size, high precision, and adjustable slot depth specifications.
  • 3) Reliable security guards, when workers operate completely without touching knives.
  • 4) Wood pallet stringer notching machine is high-quality, safe, practical, efficient and a series of properties, so that more wood pallet wood factory automation to improve mechanical, completely replace the previous trough excavation work manually.

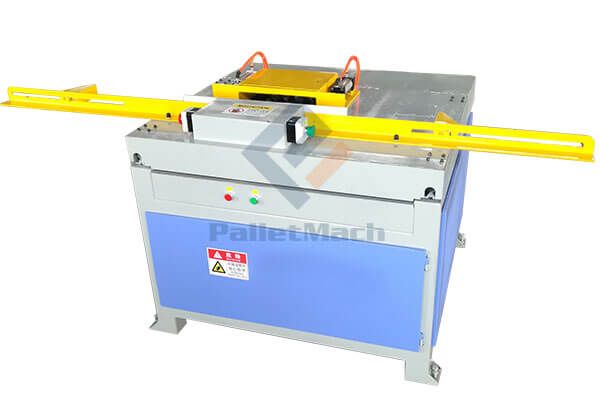

Automatic double-head notching machine for wooden pallets

  • 1) Notching length is adjustable, and the max notching length is 370 mm.
  • 2) The cutting blade is adjustable, can easy to change cutter, and cost-effective.
  • 3) The machine’s knife adopts hard alloy material, with high hardness, wear resistance, good strength and toughness, heat resistance, corrosion resistance and a series of excellent performance.
  • 4) Continuous feeding and automatic discharging platform, can double slot opened at the same time, the excavated area smooth without coarse, standard size, and high precision.
  • 5) Reliable safety protection device, so the worker operation no touch knives with high security.

Wood pallet stringer notching machine parameter

Model PMSRO-1200 PMSRO-1800
Overall dimension 1250*1250*1280 mm 2000*1200*1280mm
Stringer length Unlimited Less than 1400mm
String thickness 40-60 mm 40-60 mm
Stinger width 80 mm 80 mm
Max slot depth 230 mm 230 mm
Max slot width 45 mm 50 mm
Capacity 800-1200 pieces/hour 1500-1800 pieces/hour
Main motor power 15 kW 30 kW
Net weight 600 kg 1000 kg
